LTC4065LX

Standalone 250mA Li-Ion Battery Charger

LTC4065LX Features

* nn Charge Current Programmable up to 250mA with 5% Accuracy nn Complete Linear Charger in 2mm × 2mm DFN Package nn C/10 Charge Current Detection Output nn Timer Termination nn No External MOSFET, Sense Resistor or Blocking Diode Required nn Preset Float Voltage with 0.6% Accuracy: 4.2V for LTC4065L/

LTC4065LX General Description

The LTC®4065L is a complete constant-current/constantvoltage linear charger for single-cell lithium-ion batteries. Its small size and ability to accurately regulate low charge currents make the LTC4065L especially well-suited for portable applications using low capacity rechargeable lithium-ion cell.

LTC4065LX Datasheet (504.66 KB)

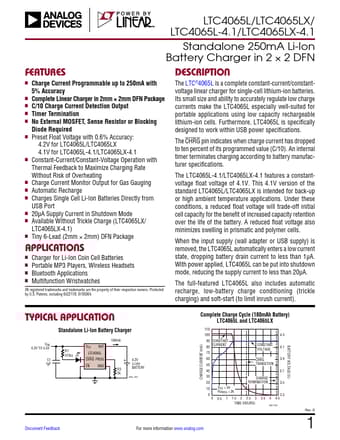

Preview of LTC4065LX PDF

Datasheet Details

Part number:

LTC4065LX

Manufacturer:

Linear

File Size:

504.66 KB

Description:

Standalone 250ma li-ion battery charger.
