LTC4065L - Standalone 250mA Li-Ion Battery Charger

LTC4065L Description

LTC4065L/LTC4065LX/ LTC4065L-4.1/LTC4065LX-4.1 Standalone 250mA Li-Ion Battery Charger in 2 × 2 DFN .
The LTC®4065L is a complete constant-current/constantvoltage linear charger for single-cell lithium-ion batteries.

LTC4065L Features

* nn Charge Current Programmable up to 250mA with 5% Accuracy nn Complete Linear Charger in 2mm × 2mm DFN Package nn C/10 Charge Current Detection Output nn Timer Termination nn No External MOSFET, Sense Resistor or Blocking Diode Required nn Preset Float Voltage with 0.6% Accuracy: 4.2V for LTC4065L/

📥 Download Datasheet

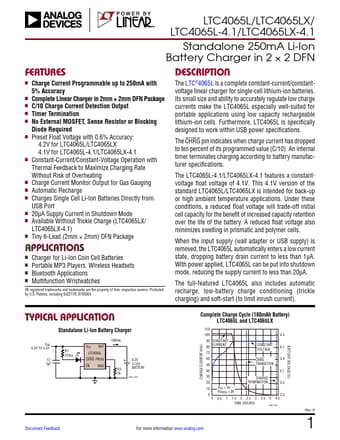

Preview of LTC4065L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC4065L
Manufacturer
Linear
File Size
504.66 KB
Datasheet
LTC4065L-Linear.pdf
Description
Standalone 250mA Li-Ion Battery Charger
