LTC4350

Hot Swappable Load Share Controller

LTC4350 Features

* n Build N + 1 Redundant Supply n Hot Swap™ Power Supplies n Isolates Supply Failures from Output n Eliminates ORing Diodes n Identifies and Localizes Output Low, Output High and Open-Circuit Faults n Output Voltages from 1.5V to 12V n 16-Lead Narrow SSOP Package Applications n Servers and Ne

LTC4350 General Description

The LTC®4350 is a load share controller that allows systems to equally load multiple power supplies connected in parallel. The output voltage of each supply is adjusted using the SENSE+ input until all currents match the share bus. The LTC4350 also isolates supply failures by turning off the series .

LTC4350 Datasheet (226.32 KB)

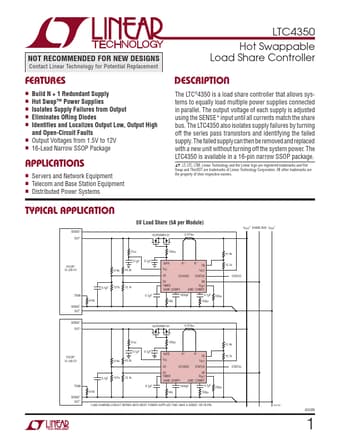

Preview of LTC4350 PDF

Datasheet Details

Part number:

LTC4350

Manufacturer:

Linear Technology

File Size:

226.32 KB

Description:

Hot swappable load share controller.
