LTC4355

Positive High Voltage Ideal Diode-OR

LTC4355 Features

* Positive High Voltage Ideal Diode-OR with Input Supply and Fuse Monitors Description n Replaces Power Schottky Diodes n Controls N-Channel MOSFETs n 0.3µs Turn-Off Time Limits Peak Fault Current n Wide Operating Voltage Range: 9V to 80V n Smooth Switchover without Oscillation n No Reverse DC

LTC4355 General Description

n Replaces Power Schottky Diodes n Controls N-Channel MOSFETs n 0.3µs Turn-Off Time Limits Peak Fault Current n Wide Operating Voltage Range: 9V to 80V n Smooth Switchover without Oscillation n No Reverse DC Current n Monitors VIN, Fuse, and MOSFET Diode n Available in 14-Lead (4mm × 3mm) D.

LTC4355 Datasheet (256.50 KB)

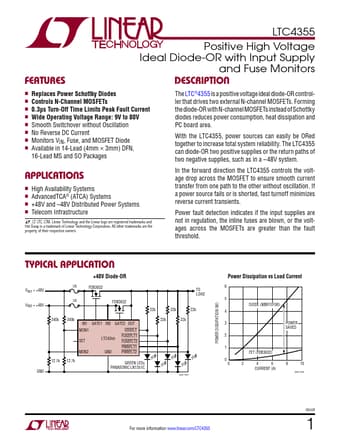

Preview of LTC4355 PDF

Datasheet Details

Part number:

LTC4355

Manufacturer:

Linear Technology

File Size:

256.50 KB

Description:

Positive high voltage ideal diode-or.
