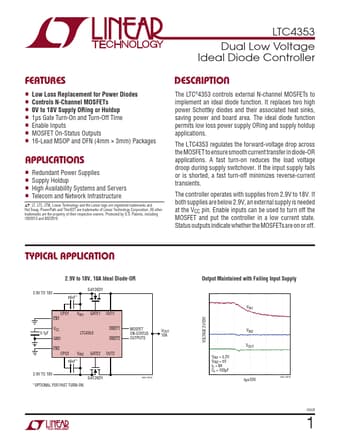

LTC4353 Dual Low Voltage Ideal Diode Controller

The LTC®4353 controls external N-channel MOSFETs to implement an ideal diode function. It replaces two high power Schottky diodes and their associated heat sinks, saving power and board area. The ideal diode function permits low loss power supply ORing and supply ho.

LTC4353 Features

* n Low Loss Replacement for Power Diodes n Controls N-Channel MOSFETs n 0V to 18V Supply ORing or Holdup n 1µs Gate Turn-On and Turn-Off Time n Enable Inputs n MOSFET On-Status Outputs n 16-Lead MSOP and DFN (4mm × 3mm) Packages Applications n Redundant Power Supplies n Supply Holdup n High A

LTC4353 Datasheet (226.96 KB)
