LTC5541 Datasheet, Mixer, Linear Technology

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Analog Devices Inc	LTC5541	LTC5541IUH-PBF	IC MIXR 1.3-2.3GHZ DWNCONV 20QFN	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (239.00 KB)

PDF File Details

Linear Technology manufacturer logo

Part number:

LTC5541

Manufacturer:

Linear Technology

File Size:

239.00 KB

Download:

📄 Datasheet

Description:

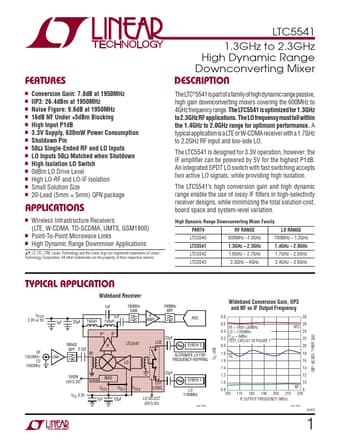

1.3ghz to 2.3ghz high dynamic range downconverting mixer. TheLTC®5541ispartofafamilyofhighdynamicrangepassive, high gain downconverting mixers covering the 600MHz to 4GHz frequency range. Th

✔ LTC5541 Features

n Conversion Gain: 7.8dB at 1950MHz n IIP3: 26.4dBm at 1950MHz n Noise Figure: 9.6dB at 1950MHz n 16dB NF Under +5dBm Blocking n High Input P1dB n 3.3V Supply, 630mW Powe

✔ LTC5541 Application

n Wireless Infrastructure Receivers (LTE, W-CDMA. TD-SCDMA, UMTS, GSM1800) n Point-To-Point Microwave Links

📁 Related Datasheet

LTC5540 - 0.6GHz to 1.3GHz High Dynamic Range Downconverting Mixer (Linear Technology)

LTC5542 - 1.6GHz to 2.7GHz High Dynamic Range Downconverting Mixer (Linear Technology)

LTC5543 - 2.3GHz to 4GHz High Dynamic Range Downconverting Mixer (Linear Technology)

LTC5548 - 2GHz to 14GHz Microwave Mixer (Linear)

LTC5549 - 2GHz to 14GHz Microwave Mixer (Linear)

LTC5505-1 - (LTC5505-1/-2) RF Power Detector (Linear Technology)

LTC5505-2 - (LTC5505-1/-2) RF Power Detector (Linear Technology)
