LTC6400-26 - Low Distortion Differential ADC Driver

LTC6400-26 Description

www.DataSheet4U.com LTC6400-26 1.9GHz Low Noise, Low Distortion Differential ADC Driver for DC-300MHz .
The LTC®6400-26 is a high-speed differential amplifier targeted at processing signals from DC to 300MHz.

LTC6400-26 Features

* 1.9GHz
* 3dB Bandwidth Fixed Gain of 20V/V (26dB)
* 94dBc IMD3 at 70MHz (Equivalent OIP3 = 51dBm)
* 71dBc IMD3 at 300MHz (Equivalent OIP3 = 39.5dBm) 1nV/√Hz Internal Op Amp Noise 1.5nV/√Hz

LTC6400-26 Applications

* The gain is internally fixed at 26dB (20V/V). The LTC6400-26 saves space and power compared to alternative solutions using IF gain blocks and transformers. The LTC6400-26 is packaged in a compact 16-lead 3mm × 3mm QFN package and operates over the
* 40°C to 85°C temperature range. L, LT, LTC

📥 Download Datasheet

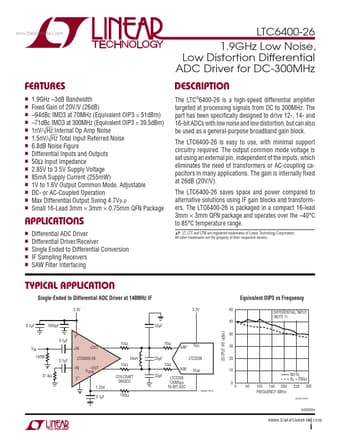

Preview of LTC6400-26 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LTC6400-26
Manufacturer
Linear Technology
File Size
262.57 KB
Datasheet
LTC6400-26_LinearTechnology.pdf
Description
Low Distortion Differential ADC Driver
