LTC6432-15 Datasheet, Amplifier, Linear

LTC6432-15 Features

  • Amplifier nn 100kHz to 1400MHz Bandwidth nn 54.4dBm OIP3 at 1MHz into a 100Ω Diff Load nn 48.0dBm OIP3 at 150MHz into a 100Ω Diff Load nn Up to 15dBm Output Power nn NF = 3.0dB at 240MHz nn Low 1

PDF File Details

Part number:

LTC6432-15

Manufacturer:

Linear

File Size:

1.46MB

Download:

📄 Datasheet

Description:

100khz to 1.4ghz differential adc driver/if amplifier. The LTC®6432-15 is an ultra-high dynamic range differential gain block amplifier designed to drive high resolution, high speed ADCs.

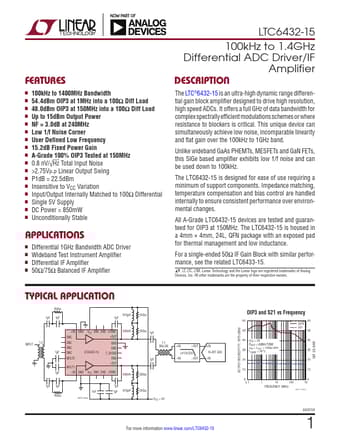

Datasheet Preview: LTC6432-15 📥 Download PDF (1.46MB)
Page 2 of LTC6432-15 Page 3 of LTC6432-15

LTC6432-15 Application

  • Applications nn Differential 1GHz Bandwidth ADC Driver nn Wideband Test Instrument Amplifier nn Differential IF Amplifier nn 50Ω/75Ω Balanced IF Amp
