LTC6401-26

Low Distortion Differential ADC Driver

LTC6401-26 Features

* 1.6GHz

* 3dB Bandwidth Fixed Gain of 20V/V (26dB)

* 85dBc IMD3 at 70MHz (Equivalent OIP3 = 46.5dBm)

* 72dBc IMD3 at 140MHz (Equivalent OIP3 = 40dBm) 1nV/√⎯H⎯z Internal Op Amp Noise 1.5nV/√

LTC6401-26 General Description

The LTC®6401-26 is a high-speed differential amplifier targeted at processing signals from DC to 140MHz. The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block. The LTC6401-26 is easy t.

LTC6401-26 Datasheet (263.00 KB)

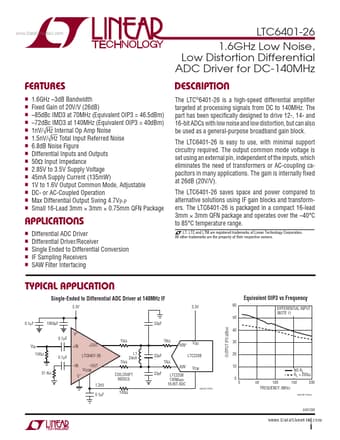

Preview of LTC6401-26 PDF

Datasheet Details

Part number:

LTC6401-26

Manufacturer:

Linear Technology

File Size:

263.00 KB

Description:

Low distortion differential adc driver.
