LTC6431-15 Datasheet, Amplifier, Linear

LTC6431-15 Features

  • Amplifier n 20MHz to 1700MHz Bandwidth n 15.5dB Power Gain n 47dBm OIP3 at 240MHz into a 50Ω Load n NF = 3.33dB at 240MHz n 1nV/√Hz Total Input Noise n S11 <
      –15dB Up to 1.2

PDF File Details

Part number:

LTC6431-15

Manufacturer:

Linear

File Size:

615.60kb

Download:

📄 Datasheet

Description:

Gain block if amplifier. The LTC®6431-15 is a gain-block amplifier with excellent linearity at frequencies beyond 1000MHz and with low associated output noise

Datasheet Preview: LTC6431-15 📥 Download PDF (615.60kb)
Page 2 of LTC6431-15 Page 3 of LTC6431-15

LTC6431-15 Application

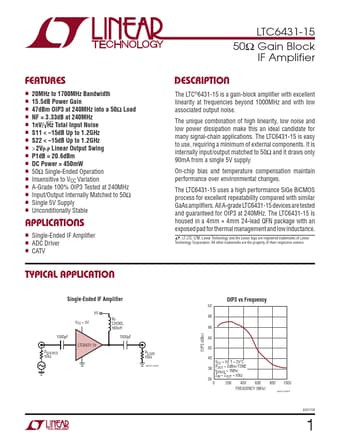

  • Applications n Single-Ended IF Amplifier n ADC Driver n CATV Typical Application LTC6431-15 50Ω Gain Block IF Amplifier Description The LTC®6431-
