LTC6401-8

Low Distortion Differential ADC Driver

LTC6401-8 Features

* 2.2GHz

* 3dB Bandwidth Fixed Gain of 2.5V/V (8dB)

* 92dBc IMD3 at 70MHz (Equivalent OIP3 = 50dBm)

* 80.5dBc IMD3 at 140MHz (Equivalent OIP3 = 44dBm) 1nV/√⎯H⎯z Internal Op Amp Noise 12.1dB Noise

LTC6401-8 General Description

The LTC®6401-8 is a high-speed differential amplifier targeted at processing signals from DC to 140MHz. The part has been specifically designed to drive 12-, 14- and 16-bit ADCs with low noise and low distortion, but can also be used as a general-purpose broadband gain block. The LTC6401-8 is easy to .

LTC6401-8 Datasheet (260.77 KB)

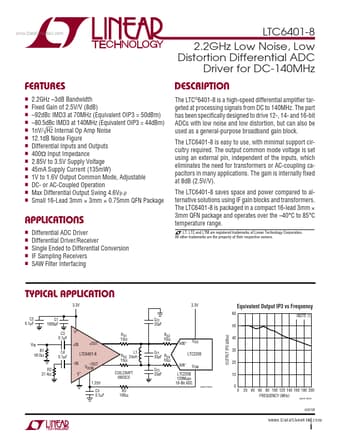

Preview of LTC6401-8 PDF

Datasheet Details

Part number:

LTC6401-8

Manufacturer:

Linear Technology

File Size:

260.77 KB

Description:

Low distortion differential adc driver.
