LT1112 - Picoamp Input Op Amps

Datasheet Summary

Features

  • Offset Voltage.
  • Prime Grade: 60µV Max.
  • Offset Voltage.
  • Low Cost Grade (Including Surface Mount Dual/Quad): 75µV Max.
  • Offset Voltage Drift: 0.5µV/°C Max.
  • Input Bias Current: 250pA Max.
  • 0.1Hz to 10Hz Noise: 0.3µVP-P, 2.2pAP-P.
  • Supply Current per Amplifier: 400µA Max.
  • CMRR: 120dB Min.
  • Voltage Gain: 1 Million Min.
  • Guaranteed Specs with ±1.0V Supplies.
  • Guaranteed Matching Specifications.
  • SO-8 Package.
  • Standard Pinout.

📥 Download Datasheet

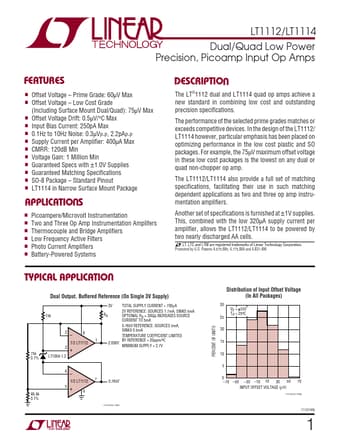

Datasheet preview – LT1112

Datasheet Details

Part number LT1112
Manufacturer Linear
File Size 331.75 KB
Description Picoamp Input Op Amps
Datasheet download datasheet LT1112 Datasheet
Additional preview pages of the LT1112 datasheet.

📁 Similar Datasheet

  • LT111 - Voltage Comparator (Linear Technology)
  • LT1110 - Micropower DC-DC Converter Adjustable and Fixed 5V/ 12V (Linear Technology)
  • LT1111 - Micropower DC/DC Converter (Linear Technology)
  • LT1116 - Single Supply Ground-Sensing Comparator (Linear Technology)
  • LT1117 - positive low dropout regulator (Linear Technology)
  • LT1117-2.85 - positive low dropout regulator (Linear Technology)
  • LT1117-3.3 - positive low dropout regulator (Linear Technology)
  • LT1117-5 - positive low dropout regulator (Linear Technology)
  • LT1118 - Source and Sink Regulators (Linear Technology)
  • LT1118-2.5 - Source and Sink Regulators (Linear Technology)
Other Datasheets by Linear
  • LT1113 - JFET Input Op Amp
  • LT1114 - Picoamp Input Op Amps
  • LT1115 - Audio Op Amp
  • LT1101 - Single Supply Instrumentation Amplifier
  • LT1121 - Micropower Low Dropout Regulators
  • LT1121-3.3 - Micropower Low Dropout Regulators
  • LT1121-5 - Micropower Low Dropout Regulators
  • LT1122 - JFET Input Operational Amplifier

Full PDF Text Transcription

Click to expand full text
LT1112/LT1114 Dual/Quad Low Power Precision, Picoamp Input Op Amps U U FEATURES ■ Offset Voltage – Prime Grade: 60µV Max ■ Offset Voltage – Low Cost Grade (Including Surface Mount Dual/Quad): 75µV Max ■ Offset Voltage Drift: 0.5µV/°C Max ■ Input Bias Current: 250pA Max ■ 0.1Hz to 10Hz Noise: 0.3µVP-P, 2.2pAP-P ■ Supply Current per Amplifier: 400µA Max ■ CMRR: 120dB Min ■ Voltage Gain: 1 Million Min ■ Guaranteed Specs with ±1.
