LT1114 Datasheet PDF - Linear Picoamp Input Op Amps Specs

LT1114 - Picoamp Input Op Amps

This page provides the datasheet information for the LT1114, a member of the LT1112 Picoamp Input Op Amps family.

Datasheet Summary

Features

Offset Voltage.
Prime Grade: 60µV Max.
Offset Voltage.
Low Cost Grade (Including Surface Mount Dual/Quad): 75µV Max.
Offset Voltage Drift: 0.5µV/°C Max.
Input Bias Current: 250pA Max.
0.1Hz to 10Hz Noise: 0.3µVP-P, 2.2pAP-P.
Supply Current per Amplifier: 400µA Max.
CMRR: 120dB Min.
Voltage Gain: 1 Million Min.
Guaranteed Specs with ±1.0V Supplies.
Guaranteed Matching Specifications.
SO-8 Package.
Standard Pinout.

Datasheet Details

Part number	LT1114
Manufacturer	Linear
File Size	331.75 KB
Description	Picoamp Input Op Amps
Datasheet	LT1114 Datasheet
Additional preview pages of the LT1114 datasheet.

📁 Similar Datasheet

LT111 - Voltage Comparator (Linear Technology)

LT1110 - Micropower DC-DC Converter Adjustable and Fixed 5V/ 12V (Linear Technology)

LT1111 - Micropower DC/DC Converter (Linear Technology)

LT1116 - Single Supply Ground-Sensing Comparator (Linear Technology)

LT1117 - positive low dropout regulator (Linear Technology)

LT1117-2.85 - positive low dropout regulator (Linear Technology)

LT1117-3.3 - positive low dropout regulator (Linear Technology)

LT1117-5 - positive low dropout regulator (Linear Technology)

LT1118 - Source and Sink Regulators (Linear Technology)

LT1118-2.5 - Source and Sink Regulators (Linear Technology)

Full PDF Text Transcription

Click to expand full text

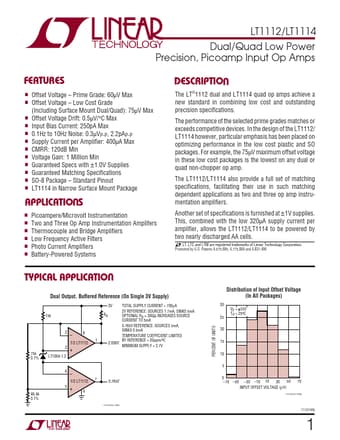

LT1112/LT1114 Dual/Quad Low Power Precision, Picoamp Input Op Amps U U FEATURES ■ Offset Voltage – Prime Grade: 60µV Max ■ Offset Voltage – Low Cost Grade (Including Surface Mount Dual/Quad): 75µV Max ■ Offset Voltage Drift: 0.5µV/°C Max ■ Input Bias Current: 250pA Max ■ 0.1Hz to 10Hz Noise: 0.3µVP-P, 2.2pAP-P ■ Supply Current per Amplifier: 400µA Max ■ CMRR: 120dB Min ■ Voltage Gain: 1 Million Min ■ Guaranteed Specs with ±1.
