LT1115 - Audio Op Amp

Datasheet Summary

Features

  • Voltage Noise: 1.2nV/√Hz Max at 1kHz 0.9nV/√Hz Typ at 1kHz.
  • Voltage and Current Noise 100% Tested.
  • Gain-Bandwidth Product: 40MHz Min.
  • Slew Rate: 10V/µs Min.
  • Voltage Gain: 2 Million Min.
  • Low THD at 10kHz, AV =.
  • 10, RL = 600Ω: 0.002% VO = 7VRMS.
  • Low IMD, CCIF Method, AV = +10: 0.002% RL = 600Ω VO = 7VRMS U.

📥 Download Datasheet

Datasheet preview – LT1115

Datasheet Details

Part number LT1115
Manufacturer Linear
File Size 238.10 KB
Description Audio Op Amp
Datasheet download datasheet LT1115 Datasheet
Additional preview pages of the LT1115 datasheet.

📁 Similar Datasheet

  • LT111 - Voltage Comparator (Linear Technology)
  • LT1110 - Micropower DC-DC Converter Adjustable and Fixed 5V/ 12V (Linear Technology)
  • LT1111 - Micropower DC/DC Converter (Linear Technology)
  • LT1116 - Single Supply Ground-Sensing Comparator (Linear Technology)
  • LT1117 - positive low dropout regulator (Linear Technology)
  • LT1117-2.85 - positive low dropout regulator (Linear Technology)
  • LT1117-3.3 - positive low dropout regulator (Linear Technology)
  • LT1117-5 - positive low dropout regulator (Linear Technology)
  • LT1118 - Source and Sink Regulators (Linear Technology)
  • LT1118-2.5 - Source and Sink Regulators (Linear Technology)
Other Datasheets by Linear
  • LT1112 - Picoamp Input Op Amps
  • LT1113 - JFET Input Op Amp
  • LT1114 - Picoamp Input Op Amps
  • LT1101 - Single Supply Instrumentation Amplifier
  • LT1121 - Micropower Low Dropout Regulators
  • LT1121-3.3 - Micropower Low Dropout Regulators
  • LT1121-5 - Micropower Low Dropout Regulators
  • LT1122 - JFET Input Operational Amplifier

Full PDF Text Transcription

Click to expand full text

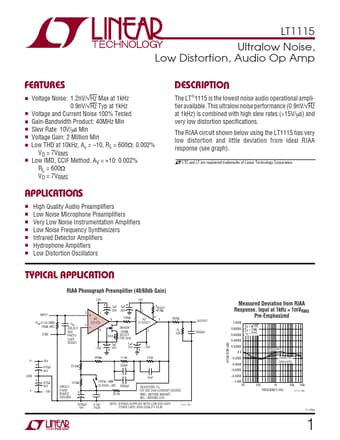

LT1115 Ultralow Noise, Low Distortion, Audio Op Amp ++ U U FEATURES ■ Voltage Noise: 1.2nV/√Hz Max at 1kHz 0.9nV/√Hz Typ at 1kHz ■ Voltage and Current Noise 100% Tested ■ Gain-Bandwidth Product: 40MHz Min ■ Slew Rate: 10V/µs Min ■ Voltage Gain: 2 Million Min ■ Low THD at 10kHz, AV = –10, RL = 600Ω: 0.002% VO = 7VRMS ■ Low IMD, CCIF Method, AV = +10: 0.002% RL = 600Ω VO = 7VRMS U APPLICATIO S ■ High Quality Audio Preamplifiers ■ Low Noise Microphone Preamplifiers ■ Very Low Noise Instrumentation Amplifiers ■ Low Noise Frequency Synthesizers ■ Infrared Detector Amplifiers ■ Hydrophone Amplifiers ■ Low Distortion Oscillators DESCRIPTIO The LT®1115 is the lowest noise audio operational amplifier available. This ultralow noise performance (0.
