LT1101 - Single Supply Instrumentation Amplifier

Datasheet Summary

Features

  • Gain Error: 0.04% Max.
  • Gain Nonlinearity: 0.0008% (8ppm) Max.
  • Gain Drift: 4ppm/°C Max.
  • Supply Current: 105µA Max.
  • Offset Voltage: 160µV Max.
  • Offset Voltage Drift: 0.4µV/°C Typ.
  • Offset Current: 600pA Max.
  • CMRR, G = 100: 100dB Min.
  • 0.1Hz to 10Hz Noise: 0.9µVp-p Typ 2.3pAp-p Typ.
  • Gain Bandwidth Product: 250kHz Min.
  • Single or Dual Supply Operation.
  • Surface Mount Package Available U.

📥 Download Datasheet

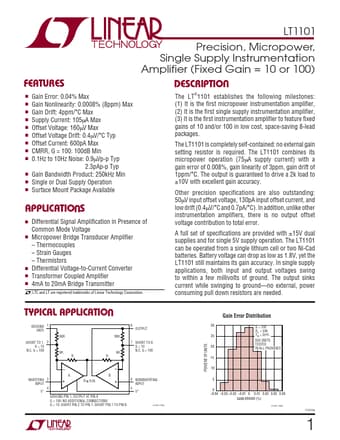

Datasheet preview – LT1101

Datasheet Details

Part number LT1101
Manufacturer Linear
File Size 229.92 KB
Description Single Supply Instrumentation Amplifier
Datasheet download datasheet LT1101 Datasheet
Additional preview pages of the LT1101 datasheet.

📁 Similar Datasheet

  • LT1100 - Precision/ Chopper-Stabilized Instrumentation Amplifier (Linear Technology)
  • LT1102 - High Speed/ Precision/ JFET Input Instrumentation Amplifier(Fixed Gain=10 or 100) (Linear Technology)
  • LT1103 - Offline Switching Regulator (Linear Technology)
  • LT1105 - Offline Switching Regulator (Linear Technology)
  • LT1106 - Micropower Step-Up DC/DC Converter for PCMCIA Card Flash Memory (Linear Technology)
  • LT1107 - Micropower DC/DC Converter Adjustable and Fixed 5V/ 12V (Linear Technology)
  • LT1108 - Micropower DC/DC Converter (Linear Technology)
  • LT1108-12 - Micropower DC/DC Converter (Linear Technology)
  • LT1109 - Micropower Low Cost DC/DC Converter Adjustable and Fixed 5V/ 12V (Linear Technology)
  • LT1109A - Micropower DC/DC Converter Flash Memory VPP Generator Adjustable and Fixed 5V/ 12V (Linear Technology)
Other Datasheets by Linear
  • LT1112 - Picoamp Input Op Amps
  • LT1113 - JFET Input Op Amp
  • LT1114 - Picoamp Input Op Amps
  • LT1115 - Audio Op Amp
  • LT1121 - Micropower Low Dropout Regulators
  • LT1121-3.3 - Micropower Low Dropout Regulators
  • LT1121-5 - Micropower Low Dropout Regulators
  • LT1122 - JFET Input Operational Amplifier

Full PDF Text Transcription

Click to expand full text
+ – U U LT1101 Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100) FEATURES ■ Gain Error: 0.04% Max ■ Gain Nonlinearity: 0.0008% (8ppm) Max ■ Gain Drift: 4ppm/°C Max ■ Supply Current: 105µA Max ■ Offset Voltage: 160µV Max ■ Offset Voltage Drift: 0.4µV/°C Typ ■ Offset Current: 600pA Max ■ CMRR, G = 100: 100dB Min ■ 0.1Hz to 10Hz Noise: 0.9µVp-p Typ 2.
