LT1106, Micropower Step-Up DC/DC Converter for PCMCIA Card Flash Memory

LT1106 Micropower Step-Up DC/DC Converter for PCMCIA Card Flash Memory .

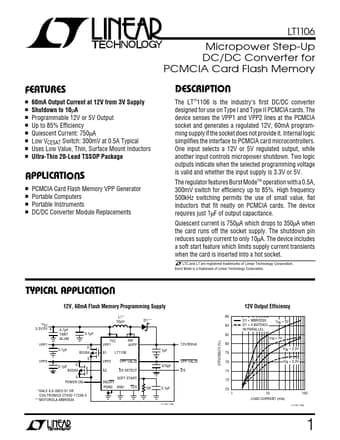

datasheet Preview Page 1 from Datasheet4u.com

LT1106_LinearTechnology.pdf

LT1106 Datasheet Preview — Preview of LT1106 PDF

Datasheet Details

Part number:

LT1106

Manufacturer:

Linear Technology

File Size:

223.24 KB

Description:

Micropower Step-Up DC/DC Converter for PCMCIA Card Flash Memory

Features

* s s s s s s s s DESCRIPTIO 60mA Output Current at 12V from 3V Supply Shutdown to 10µA Programmable 12V or 5V Output Up to 85% Efficiency Quiescent Current: 750µA Low VCESAT Switch: 300mV at 0.5A Typical Uses Low Value, Thin, Surface Mount Inductors Ultra-Thin 20-Lead TSSOP Package APPLICATI s s s

Applications

* Information section. VCC (Pins 3, 4): Input Supply. Both pins should be tied together. At least 1µF input bypass capacitance is required. More capacitance reduces ringing on the supply line. 3/5 (Pin 5): Supply Comparator Output. This pin provides logic output indicating the value of the input suppl
