LTC2157-12 - Dual 12-Bit 250Msps/210Msps/170Msps ADCs

Linear

📥 Download Datasheet

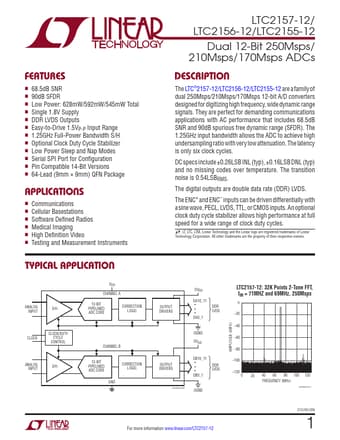

LTC2157-12 Datasheet Preview — Preview of LTC2157-12 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LTC2157-12
Manufacturer: Linear
File Size: 910.97 KB
Datasheet: LTC2157-12-Linear.pdf
Description: Dual 12-Bit 250Msps/210Msps/170Msps ADCs

LTC2157-12 Product details

Description

The LTC®2157-12/LTC2156-12/LTC2155-12 are a family of dual 250Msps/210Msps/170Msps 12-bit A/D converters designed for digitizing high frequency, wide dynamic range signals..

Features

n 68.5dB SNR n 90dB SFDR n Low Power: 628mW/592mW/545mW Total n Single 1.8V Supply n DDR LVDS Outputs n Easy-to-Drive 1.5VP-P Input Range n 1.25GHz Full-Power Bandwidth S/H n Optional Clock Duty Cycle Stabilizer n Low Power Sleep and Nap Modes n Serial SPI Port for Configuration n Pin Compatible 14-Bit Versions n 64-Lead (9mm × 9mm) QFN Package.
