LTC2157-14

Dual 14-Bit 250Msps/210Msps/170Msps ADCs

LTC2157-14 Features

* n 70dB SNR n 90dB SFDR n Low Power: 650mW/616mW/567mW Total n Single 1.8V Supply n DDR LVDS Outputs n Easy-to-Drive 1.5VP-P Input Range n 1.25GHz Full Power Bandwidth S/H n Optional Clock Duty Cycle Stabilizer n Low Power Sleep and Nap Modes n Serial SPI Port for Configuration n Pin-Compa

LTC2157-14 General Description

The LTC®2157-14/LTC2156-14/LTC2155-14 are 2-channel simultaneous sampling 250Msps/210Msps/170Msps 14-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. They are perfect for demanding communications applications with AC performance that includes 70dB SNR and 90dB s.

LTC2157-14 Datasheet (1.03 MB)

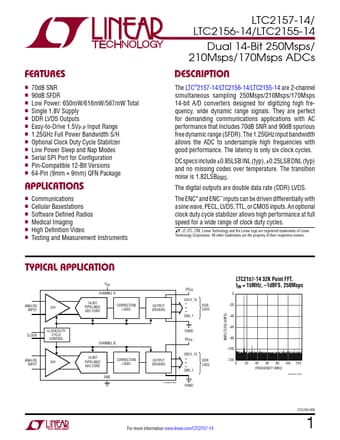

Preview of LTC2157-14 PDF

Datasheet Details

Part number:

LTC2157-14

Manufacturer:

Linear

File Size:

1.03 MB

Description:

Dual 14-bit 250msps/210msps/170msps adcs.
