STPR815DF, STPR805DF_Lite - SUPER FAST GLASS PASSIVATED RECTIFIERS

Lite-On Technology

📥 Download Datasheet

STPR815DF Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR815DF, STPR805DF_Lite. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

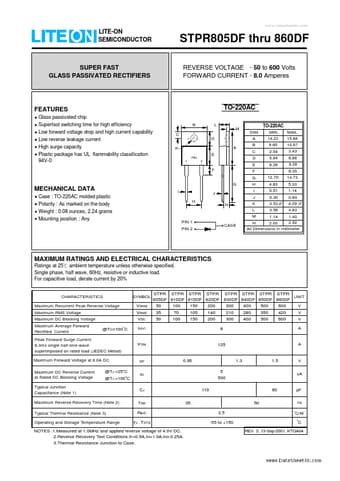

Datasheet Details

Part number	STPR815DF, STPR805DF_Lite
Manufacturer	LITEON ↗ Technology
File Size	65.05 KB
Description	SUPER FAST GLASS PASSIVATED RECTIFIERS
Datasheet	STPR805DF_Lite-OnTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: STPR815DF, STPR805DF_Lite. Please refer to the document for exact specifications by model.

STPR815DF Product details

Features

Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 TO-220AC L M D A E DIM. A B C D E F G I H J N F G H I J K TO-220AC MAX. MIN. 14.22 15.88 10.67 9.65 3.43 2.54 6.86 5.84 9.28 8.26 12.70 6.35 14.73.
