0805L150SL, 0805L075SL - Resettable PTCs

Littelfuse

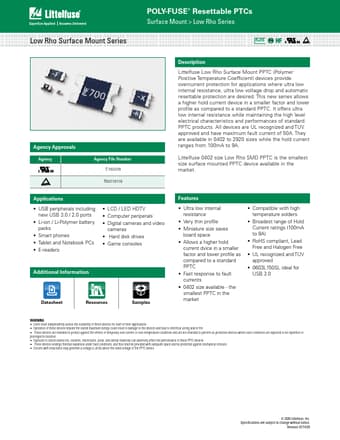

0805L150SL Datasheet Preview — This datasheet PDF includes multiple part numbers: 0805L150SL, 0805L075SL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	0805L150SL, 0805L075SL
Manufacturer	Littelfuse ↗
File Size	752.13 KB
Description	Resettable PTCs
Datasheet	0805L075SL-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: 0805L150SL, 0805L075SL. Please refer to the document for exact specifications by model.

0805L150SL Product details

Description

Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra low internal resistance, ultra low voltage drop and automatic resettable protection are desired.

Features

Ultra low internal resistance.
Very thin profile.
Miniature size saves board space.
Allows a higher hold current dvice in a smaller factor and lower profile as compared to a standard PPTC.
Fast response to fault currents.
0402 size available - the smallest PPTC in the market.
Compatible with high temperature solders.
Broadest range of Hold Current ratings (100mA to 9A).
RoHS compliant, Lead Free and Halogen Fr.
