0805L175SL, 0805L075SL Resettable PTCs

0805L175SL Description

Low Rho Surface Mount Series POLY-FUSE® Resettable PTCs Surface Mount > Low Rho Series RoHS Agency Approvals Agency Agency File Number E183209 R501.
Littelfuse Low Rho Surface Mount PPTC (Polymer Positive Temperature Coefficient) devices provide overcurrent protection for applications where ultra.

0805L175SL Features

* Ultra low internal resistance
* Very thin profile
* Miniature size saves board space
* Allows a higher hold current dvice in a smaller factor and lower profile as compared to a standard PPTC
* Fast response to fault currents
* 0402 size available

0805L175SL Applications

* where ultra low internal resistance, ultra low voltage drop and automatic resettable protection are desired. This new series allows a higher hold current device in a smaller factor and lower profile as compared to a standard PPTC. It offers ultra low internal resistance while maintaining the high le

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 0805L175SL, 0805L075SL. Please refer to the document for exact specifications by model.

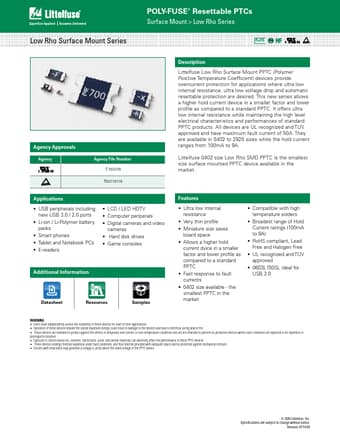

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
0805L175SL, 0805L075SL
Manufacturer
Littelfuse ↗
File Size
752.13 KB
Datasheet
0805L075SL-Littelfuse.pdf
Description
Resettable PTCs
Note
This datasheet PDF includes multiple part numbers: 0805L175SL, 0805L075SL.
Please refer to the document for exact specifications by model.
