BTB12-600TW3G - Triacs

Product Overview

Littelfuse

📥 Download Datasheet

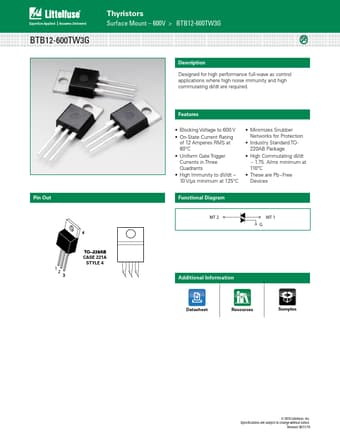

BTB12-600TW3G Triacs by Littelfuse - Datasheet Preview — Datasheet preview – BTB12-600TW3G

Datasheet Details

Part number	BTB12-600TW3G
Manufacturer	Littelfuse
File Size	431.79 KB
Description	Triacs
Datasheet	BTB12-600TW3G Datasheet
Additional preview pages of the BTB12-600TW3G datasheet.

Product details

Description

Designed for high performance full-wave ac control applications where high noise immunity and high commutating di/dt are required.

Features

Blocking Voltage to 600 V.
On-State Current Rating of 12 Amperes RMS at 80°C.
Uniform Gate Trigger Currents in Three Quadrants.
High Immunity to dV/dt.
10 V/µs minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO220AB Package.
High Commutating dI/dt.
1.75. A/ms minimum at 110°C.
These are Pb.
Free Devices Functional Diagram MT 2 MT 1 G CASE 221A STYLE 4 1 2 Additi.
