BTB12-600TW, BTB12-600SW, 12A TRIACS

BTA12, BTB12, T1205 T1210, T1235, T1250 Datasheet 12 A Snubberless™, logic level and standard Triacs A2 G A1 A2 TO-220AB G A2 A1 A2 G A1 A2 TO-220.
Available either in through-hole or surface mount packages, the BTA12, BTB12 and T12xx Triac series are suitable for general purpose mains power AC sw.

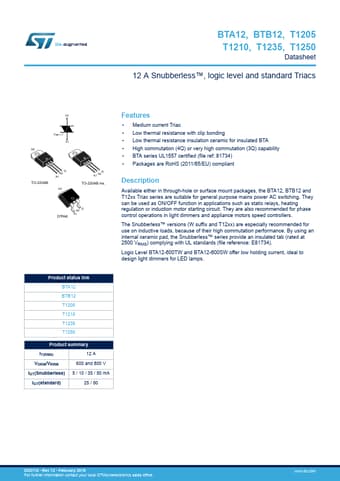

datasheet Preview Page 1 from Datasheet4u.com

BTB12-600SW_STMicroelectronics.pdf

BTB12-600TW Datasheet Preview — This datasheet PDF includes multiple part numbers: BTB12-600TW, BTB12-600SW. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BTB12-600TW, BTB12-600SW

Manufacturer:

STMicroelectronics ↗

File Size:

222.85 KB

Description:

12A TRIACS

Note:

This datasheet PDF includes multiple part numbers: BTB12-600TW, BTB12-600SW.
Please refer to the document for exact specifications by model.

Features

* Medium current Triac
* Low thermal resistance with clip bonding
* Low thermal resistance insulation ceramic for insulated BTA
* High commutation (4Q) or very high commutation (3Q) capability
* BTA series UL1557 certified (file ref: 81734)
* Packages

Applications

* such as static relays, heating regulation or induction motor starting circuit. They are also recommended for phase control operations in light dimmers and appliance motors speed controllers. The Snubberless™ versions (W suffix and T12xx) are especially recommended for use on inductive loads,
