BTB12-600B, 12A TRIACS

BTA12, BTB12, T12xx 12 A Snubberless™, logic level and standard Triacs Datasheet - production data .
Available either in through-hole or surface mount packages, the BTA12, BTB12 and T12xx Triac series are suitable for general purpose mains power AC sw.

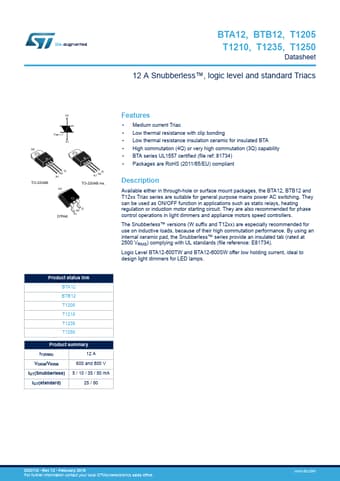

datasheet Preview Page 1 from Datasheet4u.com

BTB12-600B_STMicroelectronics.pdf

BTB12-600B Datasheet Preview — Preview of BTB12-600B PDF

Datasheet Details

Part number:

BTB12-600B

Manufacturer:

STMicroelectronics ↗

File Size:

222.86 KB

Description:

12A TRIACS

Features

* Medium current Triac
* Low thermal resistance with clip bonding
* Low thermal resistance insulation ceramic for insulated BTA
* High commutation (4Q) or very high commutation (3Q) capability
* BTA series UL1557 certified (file ref: 81734)
* Packages are RoHS (2002/95/EC) co

Applications

* ON/OFF or phase angle function in applications such as static relays, light dimmers and appliance motors speed controllers. The Snubberless™ versions (BTA/BTBW and T12 series) are especially recommended for use on inductive loads, because of their high commutation performance. The BTA series provide
