DSA30C100HB, 2 x 15A High-Performance Schottky Diode

DSA30C100HB 100 V, 2 x 15 A High-Performance Schottky Diode Low Loss and Soft Recovery Common Cathode .

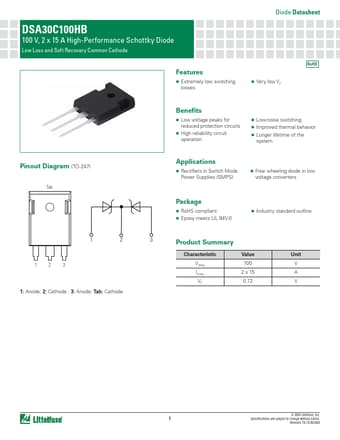

datasheet Preview Page 1 from Datasheet4u.com

DSA30C100HB-Littelfuse.pdf

DSA30C100HB Datasheet Preview — Preview of DSA30C100HB PDF

Datasheet Details

Part number:

DSA30C100HB

Manufacturer:

Littelfuse ↗

File Size:

391.71 KB

Description:

2 x 15A High-Performance Schottky Diode

Features

* Extremely low switching losses Diode Datasheet
* Very low VF RoHS Pinout Diagram (TO-247) Tab Beneﬁts
* Low voltage peaks for reduced protection circuits
* High reliability circuit operation
* Low-noise switching
* Improved thermal behavior
* Longer lifetime of th

Applications

* Rectiﬁers in Switch Mode Power Supplies (SMPS)
* Free wheeling diode in low voltage converters Package
* RoHS compliant
* Epoxy meets UL 94V-0
* Industry standard outline 1 2 123 1: Anode; 2: Cathode ; 3: Anode; Tab: Cathode 3 Product Summary Characteristic VRRM IF(AV
