DST2050S - 20A 50V Schottky Barrier Rectifier

Name: DST2050S
SKU: DST2050S-1592555

Littelfuse

📥 Download Datasheet

DST2050S Datasheet Preview — Preview of DST2050S PDF

Datasheet Details

Part number	DST2050S
Manufacturer	Littelfuse
File Size	579.03 KB
Description	20A 50V Schottky Barrier Rectifier
Datasheet	DST2050S-Littelfuse.pdf

DST2050S Product details

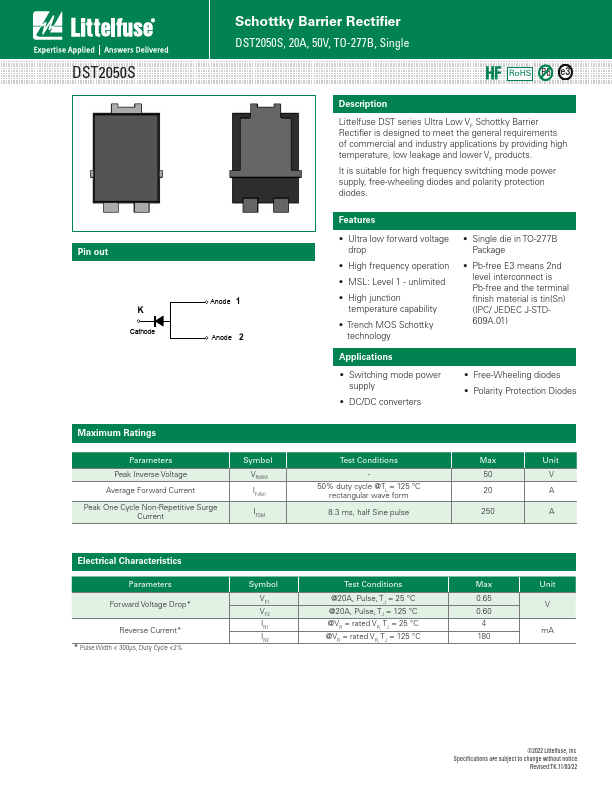

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.

Features

Ultra low forward voltage drop.
High frequency operation.
MSL: Level 1 - unlimited.
High junction temperature capability.
Trench MOS Schottky technology.
Single die in TO-277B Package.
Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD609A.01).
