K2500GH Datasheet, Sidacs, Littelfuse

K2500GH Features

• Sidacs
• A C Circuit Oriented
• T riggering Voltage of 190 to 280V
• 2 80A Pulse Current Capability
• RoHS Compliant Applications Suitable for high vo

PDF File Details

Part number:

K2500GH

Manufacturer:

Littelfuse ↗

File Size:

1.23MB

Download:

📄 Datasheet

Description:

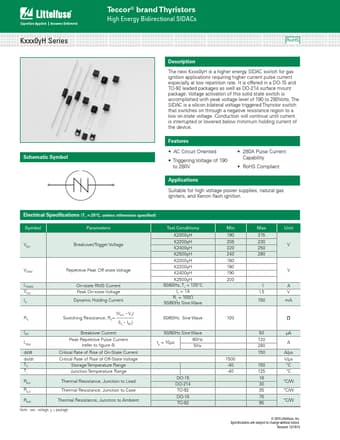

High energy bidirectional sidacs. The new Kxxx0yH is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at lo

K2500GH Application

• Applications requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 and TO-92 leaded packages as well as
