K2500SH

High Energy Bidirectional SIDACs

K2500SH Features

* A C Circuit Oriented

* T riggering Voltage of 190 to 280V

* 2 80A Pulse Current Capability

* RoHS Compliant Applications Suitable for high voltage power supplies, natural gas igniters, and Xenon flash ignition. Electrical Specifications (TJ = 25°C, unless

K2500SH General Description

The new Kxxx0yH is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 and TO-92 leaded packages as well as DO-214 surface mount package. Voltage activation of this solid state switch is accompl.

K2500SH Datasheet (1.23 MB)

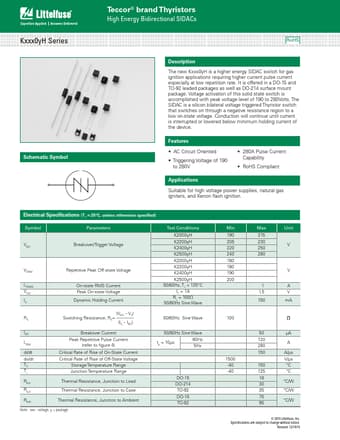

Preview of K2500SH PDF

Datasheet Details

Part number:

K2500SH

Manufacturer:

Littelfuse ↗

File Size:

1.23 MB

Description:

High energy bidirectional sidacs.
