LSP10347P, LSP10 - Surge Protection Module

Littelfuse

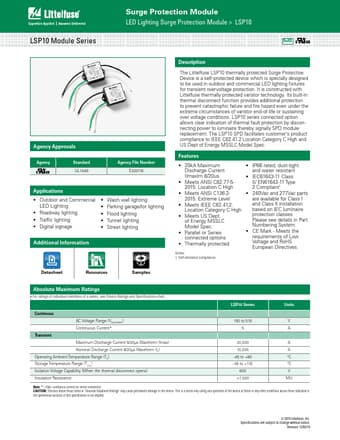

LSP10347P Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP10347P, LSP10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LSP10347P, LSP10
Manufacturer	Littelfuse ↗
File Size	589.89 KB
Description	Surge Protection Module
Datasheet	LSP10-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: LSP10347P, LSP10. Please refer to the document for exact specifications by model.

LSP10347P Product details

Description

The Littelfuse LSP10 thermally protected Surge Protective Device is a self-protected device which is specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.

Features

20kA Maximum Discharge Current (Imax)m 8/20us.
Meets ANSI C82.77-52015: Location C High.
Meets ANSI C136.22015: Extreme Level.
Meets IEEE C62.41.2: Location Category C High.
Meets US Dept. of Energy MSSLC Model Spec.
Parallel or Series connected options.
Thermally protected Notes: 1. Self-declared compliance.
IP66 rated, dust-tight and water resistant.
IEC61643-11 Class II/ EN61643-11 Type 2 Compliant1.
