LSP1004

PIN Diodes

LSP1004 Features

* Low Cost

* High Performance

* Surface Mount

* Available on Tape

* Multiple Configurations to Choose From

* RoHS Compliant1 www.MICROSEMI.com APPLICATIONS Specify EPSM package style 450A or 454. For 3 terminal style 454, refer to configuration page. Example: LSP1001-454-4

LSP1004 General Description

The LSP series of Enhanced Performance Surface Mount (EPSM) PIN diodes offers the circuit designer a higher level of quality in a commercially priced package. Choose from LSP1000, LSP1004, and LSP1008 for switching applications, LSP1002, LSP1005, LSP1010 and LSP1011 for low distortion attenuation fr.

LSP1004 Datasheet (121.33 KB)

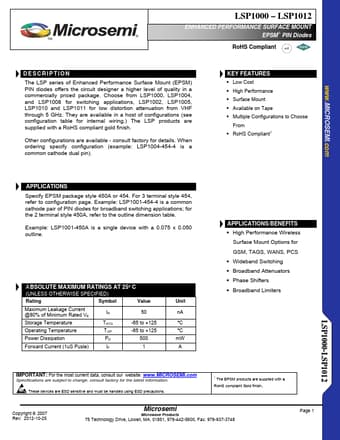

Preview of LSP1004 PDF

Datasheet Details

Part number:

LSP1004

Manufacturer:

Microsemi ↗

File Size:

121.33 KB

Description:

Pin diodes.
