Description

LSP1000 * LSP1012 ENHANCED PERFORMANCE SURFACE MOUNT ® TM EPSM® PIN Diodes RoHS Compliant .
The LSP series of Enhanced Performance Surface Mount (EPSM) PIN diodes offers the circuit designer a higher level of quality in a commercially priced.

📥 Download Datasheet

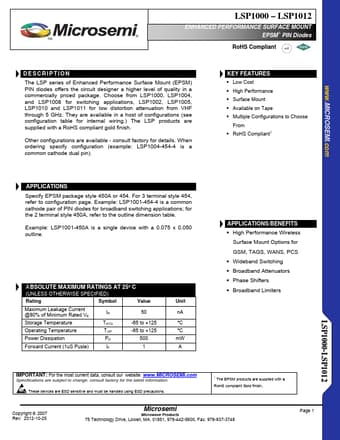

LSP1005 Datasheet Preview — This datasheet PDF includes multiple part numbers: LSP1005, LSP1000. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LSP1005, LSP1000
Manufacturer: Microsemi ↗
File Size: 121.33 KB
Datasheet: LSP1000-Microsemi.pdf
Description: PIN Diodes
Note: This datasheet PDF includes multiple part numbers: LSP1005, LSP1000.
Please refer to the document for exact specifications by model.

Features

* Low Cost
* High Performance
* Surface Mount
* Available on Tape
* Multiple Configurations to Choose From

Applications

* LSP1002, LSP1005, LSP1010 and LSP1011 for low distortion attenuation from VHF through 5 GHz. They are available in a host of configurations (see configuration table for internal wiring. ) The LSP products are supplied with a RoHS compliant gold finish. Other configurations are available - consult fa
