LSP1000 - PIN Diodes

Datasheet Summary

Description

The LSP series of Enhanced Performance Surface Mount (EPSM) PIN diodes offers the circuit designer a higher level of quality in a commercially priced package.

Features

  • Low Cost.
  • High Performance.
  • Surface Mount.
  • Available on Tape.
  • Multiple Configurations to Choose From.
  • RoHS Compliant1 www.

📥 Download Datasheet

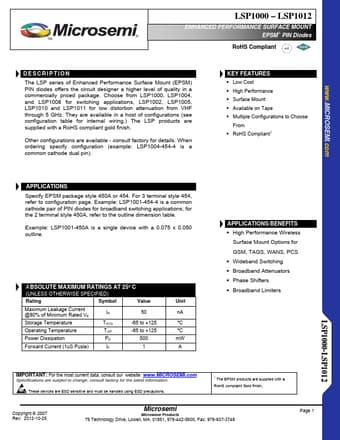

Datasheet preview – LSP1000

Datasheet Details

Part number LSP1000
Manufacturer Microsemi
File Size 121.33 KB
Description PIN Diodes
Datasheet download datasheet LSP1000 Datasheet
Additional preview pages of the LSP1000 datasheet.

📁 Similar Datasheet

  • LSP10 - Surge Protection Module (Littelfuse)
  • LSP10120P - Surge Protection Module (Littelfuse)
  • LSP10240LLP - Surge Protection Module (Littelfuse)
  • LSP10240P - Surge Protection Module (Littelfuse)
  • LSP10277P - Surge Protection Module (Littelfuse)
  • LSP10347P - Surge Protection Module (Littelfuse)
  • LSP10480LLP - Surge Protection Module (Littelfuse)
  • LSP10480LLS - Surge Protection Module (Littelfuse)
  • LSP10480P - Surge Protection Module (Littelfuse)
  • LSP10GIHP - LED Lighting Surge Protection Module (Littelfuse)
Other Datasheets by Microsemi

Full PDF Text Transcription

Click to expand full text
LSP1000 – LSP1012 ENHANCED PERFORMANCE SURFACE MOUNT ® TM EPSM® PIN Diodes RoHS Compliant DESCRIPTION The LSP series of Enhanced Performance Surface Mount (EPSM) PIN diodes offers the circuit designer a higher level of quality in a commercially priced package. Choose from LSP1000, LSP1004, and LSP1008 for switching applications, LSP1002, LSP1005, LSP1010 and LSP1011 for low distortion attenuation from VHF through 5 GHz. They are available in a host of configurations (see configuration table for internal wiring.) The LSP products are supplied with a RoHS compliant gold finish. Other configurations are available - consult factory for details. When ordering specify configuration (example: LSP1004-454-4 is a common cathode dual pin).
