SMF4L33A, SMF4L5.0A - TVS Diodes

Littelfuse

SMF4L33A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF4L33A, SMF4L5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SMF4L33A, SMF4L5.0A
Manufacturer	Littelfuse ↗
File Size	831.70 KB
Description	TVS Diodes
Datasheet	SMF4L5.0A-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SMF4L33A, SMF4L5.0A. Please refer to the document for exact specifications by model.

SMF4L33A Product details

Description

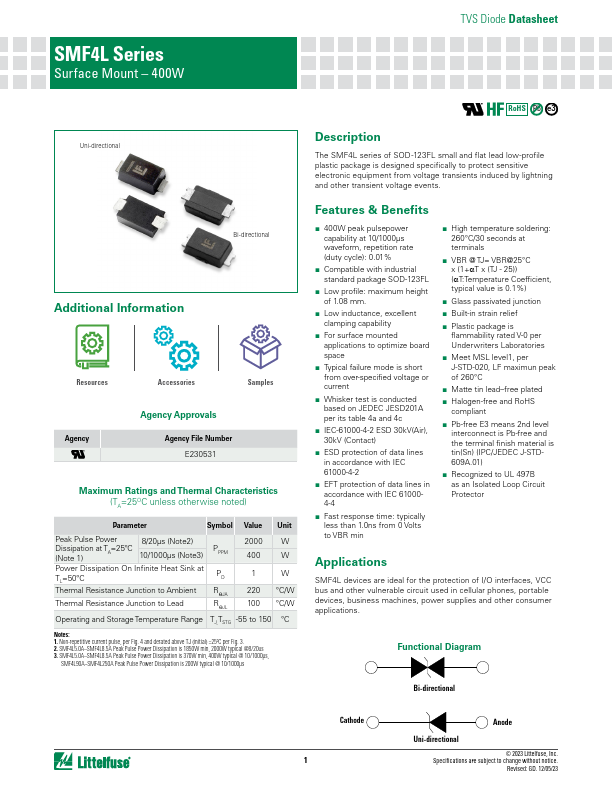

The SMF4L series of SOD-123FL small and flat lead low-profile plastic package is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

& Benefits.
400W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Compatible with industrial standard package SOD-123FL.
Low profile: maximum height of 1.08 mm.
Low inductance, excellent clamping capability.
For surface mounted.
