SMF4L36AT1G, SMF4L5.0AT1G, TVS Diodes

SMF4L-T1G Series Surface Mount - 400 W, Low Leakage Performance TVS Diodes Datasheet RoHS Pb e3 .
The SMF4L-T1G low leakage series is designed to protect sensitive systems or components from high voltage, high energy transients.

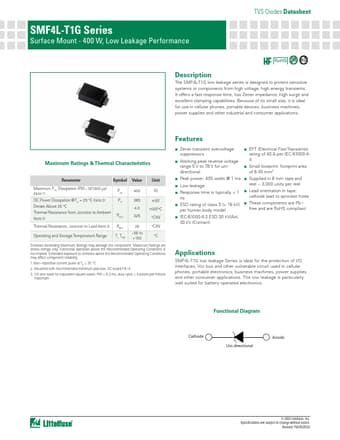

datasheet Preview Page 1 from Datasheet4u.com

SMF4L5.0AT1G-Littelfuse.pdf

SMF4L36AT1G Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF4L36AT1G, SMF4L5.0AT1G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMF4L36AT1G, SMF4L5.0AT1G

Manufacturer:

Littelfuse ↗

File Size:

742.39 KB

Description:

TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: SMF4L36AT1G, SMF4L5.0AT1G.
Please refer to the document for exact specifications by model.

Features

* Zener transient overvoltage suppressors
* Working peak reverse voltage range 5 V to 78 V for unidirectional
* EFT (Electrical Fast Transients) rating of 40 A per IEC 61000-44
* Small footprint: footprint area of 8.45 mm2
* Peak power: 400 watts @ 1 ms
* Supplied in 8 mm

Applications

* Maximum Ratings & Thermal Characteristics Parameter Symbol Value Unit Maximum PPK Dissipation (PW
* 10/1000 µs) (Note 1) PPK DC Power Dissipation @ TA = 25 °C (Note 2) PD Derate Above 25 °C Thermal Resistance from Junction to Ambient (Note 2) RƟJA 400 W 385 mW 4.0 mW/°C 325
