Datasheet Details
Part number:
SMF4L36A, SMF4L5.0A
Manufacturer:
File Size:
831.70 KB
Description:
Tvs diodes.
Note:
This datasheet PDF includes multiple part numbers: SMF4L36A, SMF4L5.0A.
Please refer to the document for exact specifications by model.
SMF4L36A, SMF4L5.0A, TVS Diodes

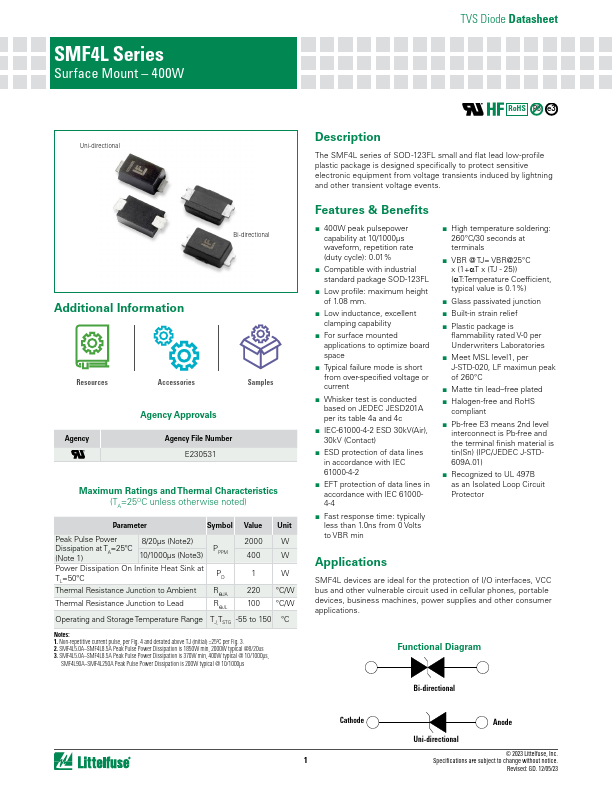

SMF4L Series Surface Mount 400W TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Additional Information Resources Agency Accessories Samples Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power 8/20μs (Note2) Dissipation at TA=25ºC (Note 1) 10/1000μs (Note3) PPPM Power Dissipation On Infinite Heat Sink at TL=50ºC PD Thermal Resistance Junction
SMF4L36A Features
* & Benefits
* 400W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%
* Compatible with industrial standard package SOD-123FL
* Low profile: maximum height of 1.08 mm.
* Low inductance, excellent clamping capability
* For surface mounted app
