SP3312T - 3.3V 15A Diode Array

SP3312T Description

TVS Diode Arrays (SPA®®Diodes) Lightning Surge Protection- SP3312T Series SP3312T Series 3.3V 15A Diode Array RoHS Pb GREEN .
The SP3312T integrates 4 channels (2 differential pair) of low capacitance diodes to protect sensitive I/O pins against lightning induced surge events.

SP3312T Features

* ESD, IEC61000-4-2, ±30kV contact, ±30kV air
* EFT, IEC61000-4-4, 40A (t =5/50ns) p
* Lightning, IEC61000-4-5, 15A (t =8/20µs) p
* Low capacitance of 1.3pF (TYP) per I/O
* Low leakage current of 0.01µA (TYP) at 3.3V
* Low variation in capacitan

SP3312T Applications

* 10/100/1000 Ethernet
* Integrated magnetics/ RJ45 connectors
* LAN/WAN Equipment
* Security Cameras
* Industrial Controls
* Notebook & Desktop Computers Life Support Note: Not Intended for Use in Life Support or Life Saving Applications The product

📥 Download Datasheet

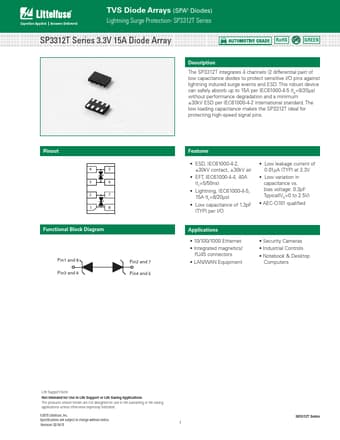

Preview of SP3312T PDF
datasheet Preview Page 2 datasheet Preview Page 3
