SP330E - RS-232/RS-485/RS-422 TRANSCEIVER

Product Overview

MaxLinear

Datasheet Details

Part number	SP330E
Manufacturer	MaxLinear
File Size	1.01 MB
Description	RS-232/RS-485/RS-422 TRANSCEIVER
Datasheet	SP330E Datasheet

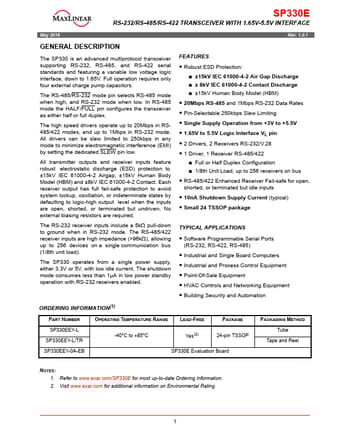

Additional preview pages of the SP330E datasheet.

Product details

Description

The SP330 is an advanced multiprotocol transceiver supporting RS-232, RS-485, and RS-422 serial standards and featuring a variable low voltage logic interface, down to 1.65V.

Features

Robust ESD Protection:.
±15kV IEC 61000-4-2 Air Gap Discharge.
± 8kV IEC 61000-4-2 Contact Discharge.
±15kV Human Body Model (HBM).
20Mbps RS-485 and 1Mbps RS-232 Data Rates.
Pin-Selectable 250kbps Slew Limiting.
Single Supply Operation from +3V to +5.5V.
1.65V to 5.5V Logic Interface VL pin.
2 Drivers, 2 Receivers RS-232/V.28.
1 Driver, 1 Receiver RS-485/422.
Full or Half Duplex Configuration.
1/8th Unit Load, up to 256 receivers on b.
