SP331

Programmable Dual RS-232/RS-485 Transceiver

SP331 Features

* +5V Only Operation

* Software Programmable

SP331 General Description

The SP331 is a programmable RS-232 and/or RS-485 transceiver IC. The SP331 contains four drivers and four receivers when selected in RS-232 mode; and two drivers and two receivers when selected in RS-485 mode. The SP331 also contains a dual mode which has two RS-232 drivers/receivers plus one differ.

SP331 Datasheet (343.71 KB)

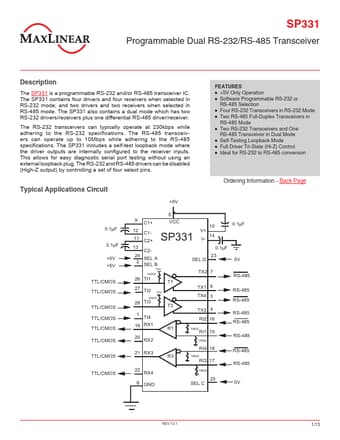

Preview of SP331 PDF

Datasheet Details

Part number:

SP331

Manufacturer:

MaxLinear

File Size:

343.71 KB

Description:

Programmable dual rs-232/rs-485 transceiver.
