SP335E - RS-232/RS-485/RS-422 TRANSCEIVER

Product Overview

MaxLinear

📥 Download Datasheet

SP335E RS-232/RS-485/RS-422 TRANSCEIVER by MaxLinear - Datasheet Preview — Datasheet preview – SP335E

Datasheet Details

Part number	SP335E
Manufacturer	MaxLinear
File Size	1.03 MB
Description	RS-232/RS-485/RS-422 TRANSCEIVER
Datasheet	SP335E Datasheet

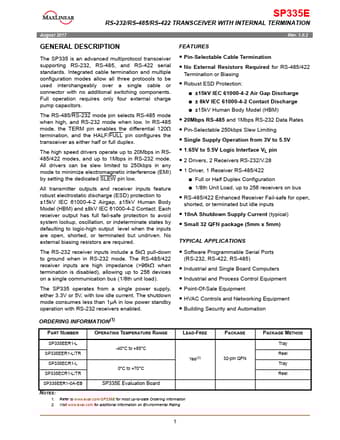

Additional preview pages of the SP335E datasheet.

Product details

Description

The SP335 is an advanced multiprotocol transceiver supporting RS-232, RS-485, and RS-422 serial standards.

Features

Pin-Selectable Cable Termination.
No External Resistors Required for RS-485/422 Termination or Biasing.
Robust ESD Protection:.
±15kV IEC 61000-4-2 Air Gap Discharge.
± 8kV IEC 61000-4-2 Contact Discharge.
±15kV Human Body Model (HBM).
20Mbps RS-485 and 1Mbps RS-232 Data Rates.
Pin-Selectable 250kbps Slew Limiting.
Single Supply Operation from 3V to 5.5V.
1.65V to 5.5V Logic Interface VL pin.
2 Drivers, 2 Receivers RS-232/V.28.
1 Drive.
