SP3313

100% Duty Cycle CC&CV Buck Convertor

SP3313 Features

* 100% Duty Cycle Car Charge Scheme

* Build in High-Side and Low-Side MOSFET

* Max Output Current: 3.5A

* Adjustable Output Voltage, VFB=1.0V

* Excellent Constant Current Accura

SP3313 General Description

SP3313 has an optimum input voltage, step-down converter that operates in either CV (Constant Output Voltage) mode or CC (Constant Output Current) mode. The maximum input voltage is up to 36V and the operation input voltage from 7.5V to 32V. MOSFET, what build in 35mΩ High-Side and 25mΩ Low-Side, co.

SP3313 Datasheet (1.10 MB)

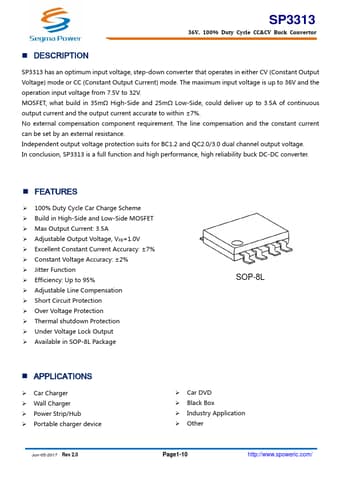

SP3313 Datasheet Preview — Preview of SP3313 PDF

Datasheet Details

Part number:

SP3313

Manufacturer:

Segma Power

File Size:

1.10 MB

Description:

100% duty cycle cc&cv buck convertor.
