SZ1SMB40CAT3G, SZ1SMB5.0AT3G TVS Diodes

Littelfuse

Description

SZ1SMB Series Surface Mount TVS Diode Datasheet RoHS Pb e3 Bi-directional .
The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

📥 Download Datasheet

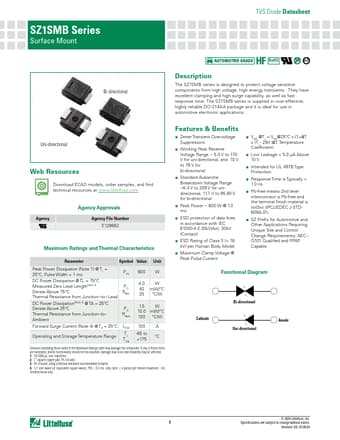

SZ1SMB40CAT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1SMB40CAT3G, SZ1SMB5.0AT3G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ1SMB40CAT3G, SZ1SMB5.0AT3G
Manufacturer: Littelfuse ↗
File Size: 823.74 KB
Datasheet: SZ1SMB5.0AT3G-Littelfuse.pdf
Description: TVS Diodes
Note: This datasheet PDF includes multiple part numbers: SZ1SMB40CAT3G, SZ1SMB5.0AT3G.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* Zener Transient Overvoltage Suppressors
* Working Peak Reverse Voltage Range
* 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional
* Standard Avalanche Breakdown Voltage Range
* 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-di

Applications

* Uni-directional Web Resources Download ECAD models, order samples, and find technical recources at www. littelfuse. com Agency Agency Approvals Agency File Number E128662 Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse
