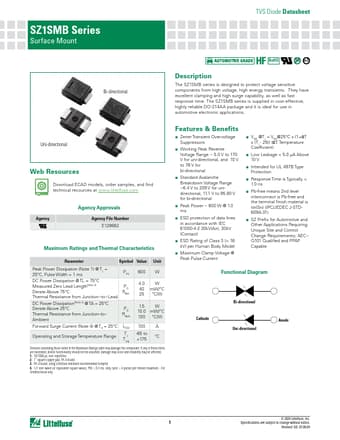

SZ1SMB Series Surface Mount TVS Diode Datasheet RoHS Pb e3 Bi-directional .
The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

Features

* & Benefits
* Zener Transient Overvoltage Suppressors
* Working Peak Reverse Voltage Range
* 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional
* Standard Avalanche Breakdown Voltage Range
* 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-di

Applications

* Uni-directional Web Resources Download ECAD models, order samples, and find technical recources at www. littelfuse. com Agency Agency Approvals Agency File Number E128662 Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse

SZ1SMB5.0AT3G-Littelfuse.pdf
