SZ1SMC5.0AT3G - TVS Diodes

Name: SZ1SMC5.0AT3G
SKU: SZ1SMC5.0AT3G-1278507

Littelfuse

The SZ1SMC5.0AT3G by Littelfuse is a TVS Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SZ1SMC5.0AT3G
Manufacturer	Littelfuse
File Size	597.46 KB
Description	TVS Diodes
Datasheet	SZ1SMC5.0AT3G-Littelfuse.pdf

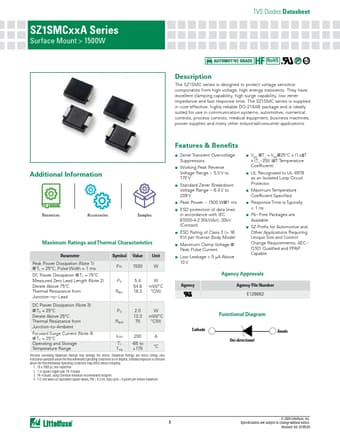

Additional preview pages of the SZ1SMC5.0AT3G datasheet.

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.

& Benefits.
Zener Transient Overvoltage Suppressors.
Working Peak Reverse Voltage Range.
5.0 V to 170 V.
Standard Zener Breakdown Voltage Range.
6.4 V to 209 V.
Peak Power.
1500 W@1 ms.
ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
ESD Rating of Class 3 (> 16 KV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 5 µA Above 10 V.
VBR @TJ = VBR@25°C x (1.
