SZ1SMC6.0AT3G, SZ1SMC5.0AT3G - TVS Diodes

Name: SZ1SMC6.0AT3G
SKU: SZ1SMC6.0AT3G-1278508

Littelfuse

The SZ1SMC6.0AT3G by Littelfuse is a TVS Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SZ1SMC6.0AT3G, SZ1SMC5.0AT3G
Manufacturer	Littelfuse
File Size	597.46 KB
Description	TVS Diodes
Datasheet	SZ1SMC5.0AT3G-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SZ1SMC6.0AT3G, SZ1SMC5.0AT3G. Please refer to the document for exact specifications by model.

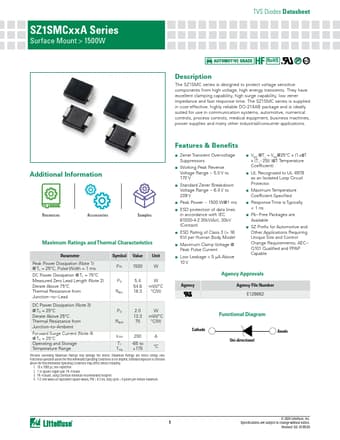

Additional preview pages of the SZ1SMC6.0AT3G datasheet.

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients.

& Benefits.
Zener Transient Overvoltage Suppressors.
Working Peak Reverse Voltage Range.
5.0 V to 170 V.
Standard Zener Breakdown Voltage Range.
6.4 V to 209 V.
Peak Power.
1500 W@1 ms.
ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
ESD Rating of Class 3 (> 16 KV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 5 µA Above 10 V.
VBR @TJ = VBR@25°C x (1.
