SZ1SMC9.0AT3G

TVS Diodes

Littelfuse

SZ1SMC9.0AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V

* Standard Zener Breakdown Voltage Range

* 6.4 V to 209 V

* Peak Power

* 1500 W@1 ms

* ESD protection of data lines in accordance with IEC 61000-4-2

SZ1SMC9.0AT3G General Description

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMC series is supplied in cost-effective, highly reliable DO-214AB packa.

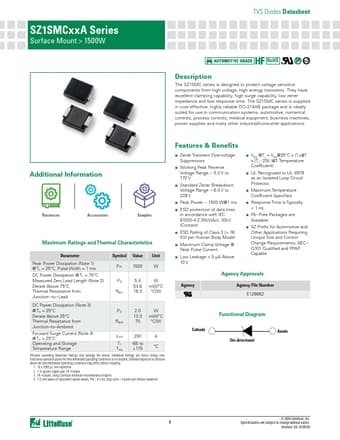

SZ1SMC9.0AT3G Datasheet (597.46 KB)
