SZNS6A10AFT3G - TVS Diodes

Product Overview

Littelfuse

📥 Download Datasheet

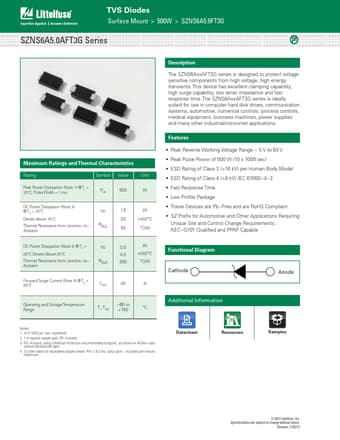

SZNS6A10AFT3G TVS Diodes by Littelfuse - Datasheet Preview — Datasheet preview – SZNS6A10AFT3G

Datasheet Details

Part number	SZNS6A10AFT3G
Manufacturer	Littelfuse
File Size	333.17 KB
Description	TVS Diodes
Datasheet	SZNS6A10AFT3G Datasheet
Note	This datasheet PDF includes multiple part numbers: SZNS6A10AFT3G, SZNS6A5.0AFT3G. Please refer to the document for exact specifications by model.
Additional preview pages of the SZNS6A10AFT3G datasheet.

Product details

Description

The SZNS6AxxAFT3G series is designed to protect voltage sensitive components from high voltage, high energy transients.

Features

Peak Reverse Working Voltage Range.
5 V to 64 V.
Peak Pulse Power of 500 W (10 x 1000 sec).
ESD Rating of Class 3 (>16 kV) per Human Body Model.
ESD Rating of Class 4 (>8 kV) IEC 61000.
4.
2.
Fast Response Time.
Low Profile Package.
These Devices are Pb.
Free and are RoHS Compliant.
SZ Prefix for Automotive and Other.
