SZNSP8814L

ESD and Surge Protection Device

SZNSP8814L Features

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (ESD) ±30 kV (Contact) IEC 61000

* 4

* 5 (Lightning) 35 A (8/20 ms)

* Flow

* Thru Routing Scheme

* Low Capacitance: 2 pF Max (I/O to I/O)

* UL Flammability Rating of 94 V

SZNSP8814L General Description

of survivability specs. © Semiconductor Components Industries, LLC, 2019 1 January, 2023

* Rev. 1 Publication Order Number: SZNSP8814L/D SZNSP8814L I/O I/O GND I/O I/O GND GND GND I/O I/O GND I/O I/O Pin4 Pin5 Pin9 Pin10 Pin Schematic ELECTRICAL CHARACTERISTICS (TA = 25°C unless ot.

SZNSP8814L Datasheet (346.78 KB)

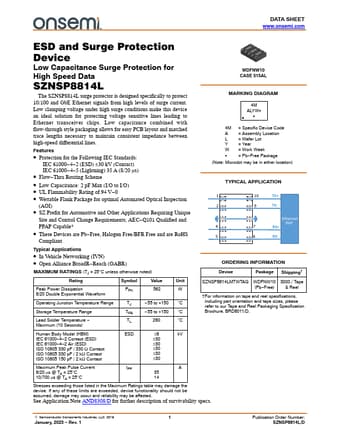

Preview of SZNSP8814L PDF

Datasheet Details

Part number:

SZNSP8814L

Manufacturer:

ON Semiconductor ↗

File Size:

346.78 KB

Description:

Esd and surge protection device.
DATA SHEET www.onsemi.com ESD and Surge Protection Device Low Capacitance Surge Protection for High Speed Data SZNSP8814L The SZNSP8814L surge pro.
