SZNS6A11AFT3G - TVS Diodes

This page provides the datasheet information for the SZNS6A11AFT3G, a member of the SZNS6A5.0AFT3G TVS Diodes family.

Datasheet Summary

Description

The SZNS6AxxAFT3G series is designed to protect voltage sensitive components from high voltage, high energy transients.

This device has excellent clamping capability, high surge capability, low zener impedance and fast response time.

Features

  • Peak Reverse Working Voltage Range.
  • 5 V to 64 V.
  • Peak Pulse Power of 500 W (10 x 1000 sec).
  • ESD Rating of Class 3 (>16 kV) per Human Body Model.
  • ESD Rating of Class 4 (>8 kV) IEC 61000.
  • 4.
  • 2.
  • Fast Response Time.
  • Low Profile Package.
  • These Devices are Pb.
  • Free and are RoHS Compliant.
  • SZ Prefix for Automotive and Other.

📥 Download Datasheet

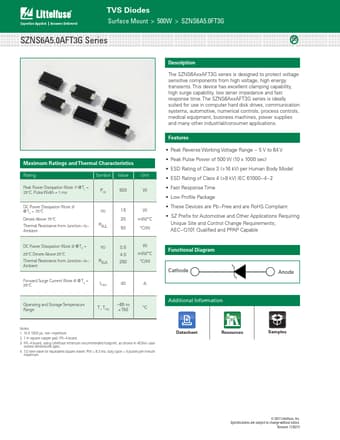

Datasheet preview – SZNS6A11AFT3G

Datasheet Details

Part number SZNS6A11AFT3G
Manufacturer Littelfuse
File Size 333.17 KB
Description TVS Diodes
Datasheet download datasheet SZNS6A11AFT3G Datasheet
Additional preview pages of the SZNS6A11AFT3G datasheet.

📁 Similar Datasheet

  • SZNSP8814L - ESD and Surge Protection Device (ON Semiconductor)
  • SZN4460 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4461 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4462 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4463 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4464 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4465 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4466 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4467 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
  • SZN4468 - (SZN4460 - SZN4496) ZENER DIODES (SSDI)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
TVS Diodes Surface Mount > 500W > SZNS6A5.0FT3G SZNS6A5.0AFT3G Series Pb Maximum Ratings and Thermal Characteristics Rating Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms PPK 500 W DC Power Dissipation (Note 3) @ TA = 75°C Derate Above 75°C Thermal Resistance from Junction−to− Ambient PD R8JL 1.5 W 20 mW/°C 50 °C/W DC Power Dissipation (Note 3) @ TA = 25°C Derate Above 25°C Thermal Resistance from Junction−to− Ambient PD R8JA 0.5 W 4.0 mW/°C 250 °C/W Forward Surge Current (Note 4) @ TA = 25°C IFSM 40 A Operating and Storage Temperature Range TJ, Tstg −65 to +150 °C Description The SZNS6AxxAFT3G series is designed to protect voltage sensitive components from high voltage, high energy transients.
