DB101S, DB101 Glass Passivated Bridge Rectifiers

DB101S Description

DB101(S) - DB107(S) Single Phase 1.0 AMP.Glass Passivated Bridge Rectifiers DB .

DB101S Features

* Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: o 260 C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Small size, simple installation High surge current capability DBS .047(1.20) .04

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB101S, DB101. Please refer to the document for exact specifications by model.

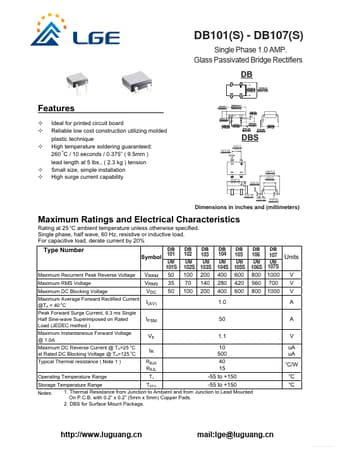

datasheet Preview Page 2

Datasheet Details

Part number
DB101S, DB101
Manufacturer
Luguang Electronic
File Size
258.77 KB
Datasheet
DB101_LuguangElectronic.pdf
Description
Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DB101S, DB101.
Please refer to the document for exact specifications by model.
