IS31FL3193, 3-CHANNEL FUN LED DRIVER

IS31FL3193 3-CHANNEL FUN LED DRIVER April 2024 GENERAL .
IS31FL3193 is a 3-channel fun LED driver which features two-dimensional auto breathing mode.

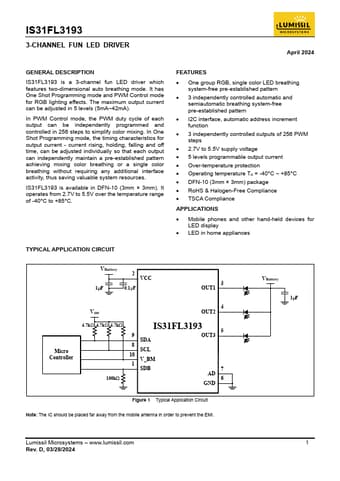

datasheet Preview Page 1 from Datasheet4u.com

IS31FL3193-Lumissil.pdf

IS31FL3193 Datasheet Preview — Preview of IS31FL3193 PDF

Datasheet Details

Part number:

IS31FL3193

Manufacturer:

Lumissil

File Size:

404.27 KB

Description:

3-CHANNEL FUN LED DRIVER

Features

* two-dimensional auto breathing mode. It has One Shot Programming mode and PWM Control mode for RGB lighting effects. The maximum output current can be adjusted in 5 levels (5mA~42mA). In PWM Control mode, the PWM duty cycle of each output can be independently programmed and controlled in 256 steps t

Applications

* Mobile phones and other hand-held devices for LED display
* LED in home appliances TYPICAL APPLICATION CIRCUIT VBattery 1F 2 VCC 0.1 F 3 OUT1 VDD 4.7k 4.7k 4.7k Micro Controller 100k 4 OUT2 IS31FL3193 5 9 OUT3 SDA 8 SCL 10 V_BM 1 SDB 7 AD 6 GND Figure 1 Typica
